TPD6E004RSER
Manufacturer:
Texas Instruments
Mfr.Part #:
TPD6E004RSER
Datasheet:
Description:

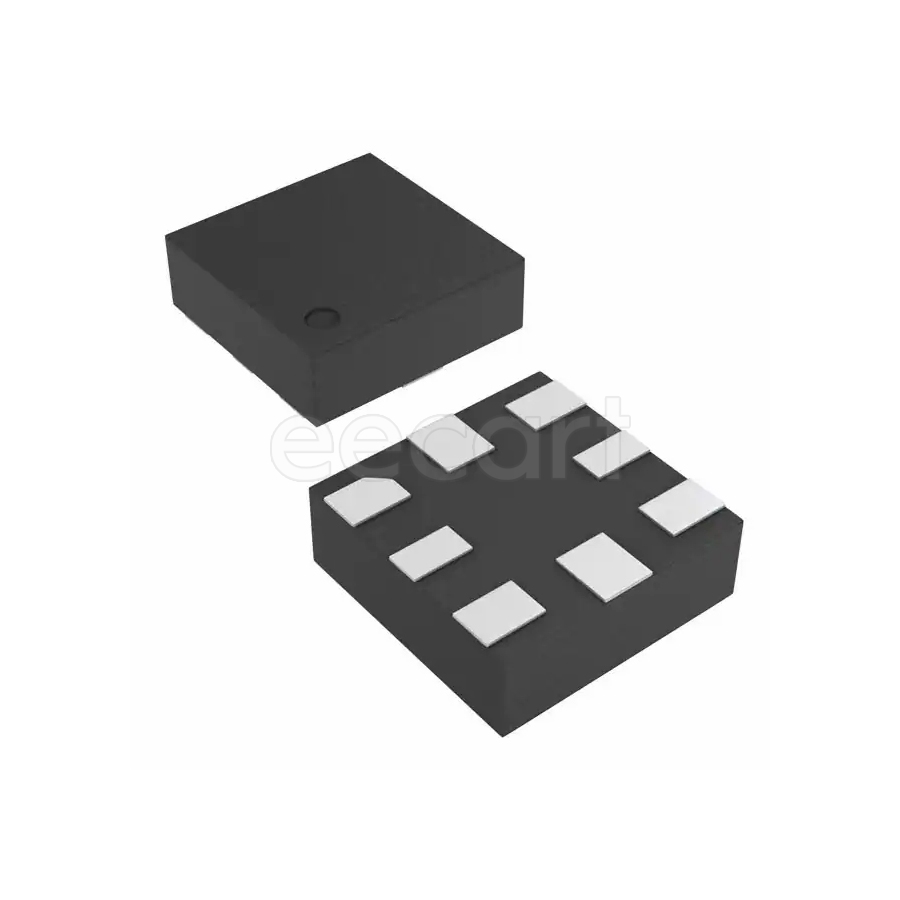

ESD and Circuit Protection ICs UQFN-8 LLC(QFN) Working Voltage:5.5 V Breakdown Voltage:6 V - 1.6 pF
| Parameter | Value |
|---|---|
| Capacitance | 2 pF |
| Length | 1.5 mm |
| Width | 1.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Leakage Current | 1 nA |
| Height | 600 µm |
| Packaging | Reel |
| Depth | 1.5 mm |
| Thickness | 0.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Weight | 5.301361 mg |
| Interface | USB |
| Working Voltage | 5.5 V |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 900 mV |
| Number of Channels | 6 |
| Breakdown Voltage | 6 V |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5.5 V |
| Clamping Voltage | 20 V |
| Peak Pulse Power | - |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 6 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 12 kV |
| Diode Capacitance | 1.6 pF |
Stock: 4497
Distributors
pcbx
pcbxUnit Price$0.80107
Ext.Price$0.80107
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.80107 | $0.80107 |
| 10 | $0.50526 | $5.05260 |
| 25 | $0.43951 | $10.98775 |
| 50 | $0.38232 | $19.11600 |
| 100 | $0.33257 | $33.25700 |
| 300 | $0.29303 | $87.90900 |
| 500 | $0.25819 | $129.09500 |
| 1000 | $0.23340 | $233.40000 |
| 3000 | $0.20262 | $607.86000 |
| 5000 | $0.18936 | $946.80000 |
| 10000 | $0.17697 | $1769.70000 |
